High Energy Laser Optical Components
	Infrared Transmitting Components

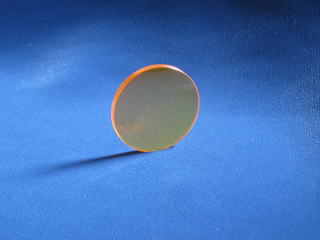

◎ ZnSe Plano convex lenses
20 ,25 ,30 ,40 , 50 ,60 (f=30, 50, 100, 200, 400 )
1" , 1.1" , 1.5" , 2", 2.5" (f=2.5", 3.75", 5",7.5",10")
AR Corting，CO2(98%up)+He-Ne(90%up) AR Corting(2 Wavelength)(special)
◎ ZnSe Meniscus lenses
20 , 25 , 30 , 40 , 50 (f=30, 50, 100 )
1" , 1.1" , 1.5"，2" (f=2",3.75",5" )
AR Corting

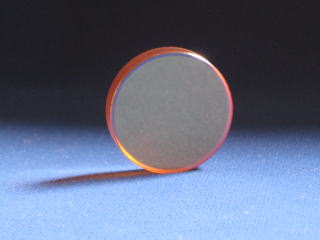

◎ ZnSe Plano and Plano Concave Mirror
20 , 25 , 30 , 40 , 50
1", 1.1", 1.5"，2"
1m,3m,5m,7m,10m,20m,30m,40m,flat
1/20 wave (at 50mm ，wave=10.6micron）
less than 1minute
AR Corting,Partial Reflective Corting
◎ ZnSe Window
20 , 25 , 30 , 40 , 50 ,60
1", 1.1", 1.5"，2"
1/20 wave (at 50mm ，wave=10.6micron）
less than 2minutes
AR Corting

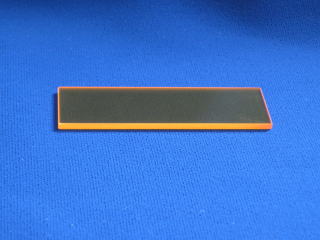

◎ZnSe Brewster Windows
specify width,length and thickness
1/20 wave (at 50mm ，wave=10.6micron）
less than 30 Seconds
Polished
◎ ZnSe Cylindrical lenses
specify curvature,width,length and thickness
AR Corting
◎ Ge Plano convex and Meniscus lenses
20 , 25 , 30 , 40 , 50 (f=30, 50, 100 )
1", 1.1", 1.5"，2" (f=2",3.75",5" )
AR Corting

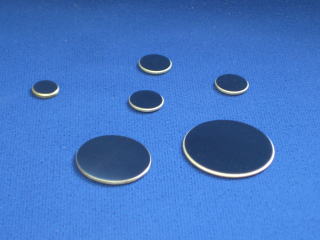

◎ Ge Windows
6 , 8 , 10 , 20 , 25 , 30 , 40 , 50
1", 1.1", 1.5"，2"
less than 3minutes
50 micron
AR Corting (Specify wavelength）

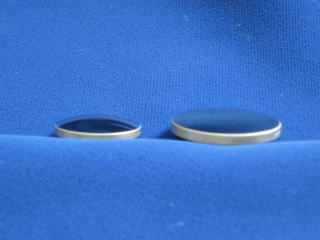

◎Si Plano convex lenses
20 , 25 , 30 , 40 ,48 , 50 ,100 (f=30, 50, 100)
AR Corting (Specify wavelength）

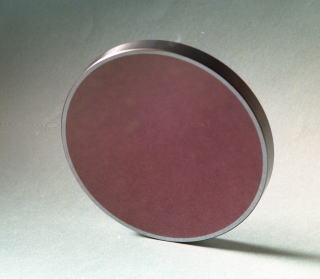

◎ Si Windows
20 , 25 ,30 ,40 ,48 ,50 ,100 ,150
less than 3minutes
50micron
AR Corting（Specify wavelength） electric conductivity thin film(special)
◎Si Plano and Plano Concave Mirror
20 , 25 , 30 , 40 , 50 ,60
1", 1.1", 1.5"，1.75" 2"
0.4m,0.6m,0.8m,1m,3m,5m,7m,10m,20m,30m,40m,flat
1/20 wave (at 50mm ，wave=10.6micron）
Specify 45゜or vertical
Ag+dielectric multicoat，Ag+protectcoat，Au coat

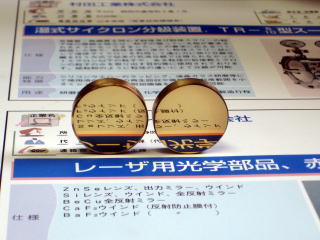

◎BeCu Plano and Plano Concave Mirror
20 , 25 , 30 , 40 , 50 ,60 ,100 ,200
1", 1.1", 1.5"，1.75", 2"
0.4m,0.6m,0.8m,1m,3m,5m,7m,10m,20m,30m,40m,flat
1/20 wave (at 50mm ，wave=10.6micron）
Specify 45゜or vertical
Au coat

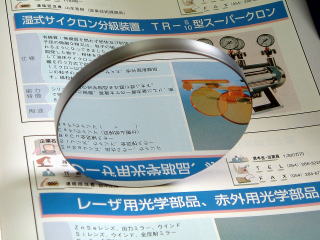

◎ Mo Plano and Plano Concave Mirror
1", 1.1", 1.5"1.75", 2"
0.4m,0.6m,0.8m,1m,3m,5m,7m,10m,20m,30m,40m,flat
1/20 wave (at 50mm ，wave=10.6micron）
Polished

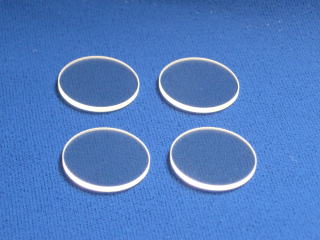

◎ ZnS Windows
20 , 25 , 30 , 40 , 50
1", 1.1", 1.5" 2"
less than 3 minutes
noncoat，AR Corting
◎ CaF2 Plano convex and Plano concave lenses
10 ,15 , 20 , 25 , 30 , 40 , 50 ,100 ,120
noncoat，AR Corting

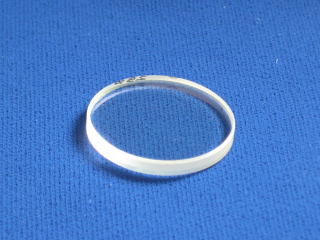

◎ CaF2 Windows
15 , 20 , 25 , 30 , 40 , 50 , 100 ,120
noncoat，AR Corting
◎ BaF2 Plano convex and Plano concave lenses
10 , 15 , 20 , 25 , 30 , 40 , 50 ,60 ,90
noncoat，AR Corting

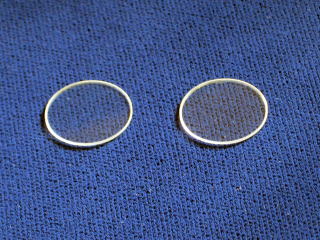

◎BaF2 Windows
15 , 20 , 25 30 , 40 , 50 ,60 ,90
noncoat，AR Corting
◎MgO Plano convex lenses
25 , 30 , 40 , 50
AR Corting
◎MgO Windows
25 , 30 , 40 , 50,rectangle
AR Corting
◎BK7 Plano convex lenses
15 , 20 , 25 , 30 , 40 , 50 ,100 (f=300,350,400)
AR Corting

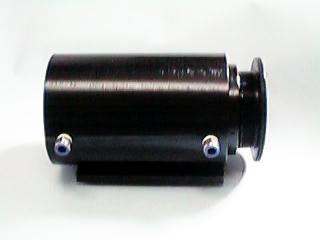

OHS parts （Subaru Telescope）	LaserBeam Expander

※Phase Retarder,Beamsplitter、Etaron、Filter、Dome are being made,too.
※MgF2,SiO2 are done,too.

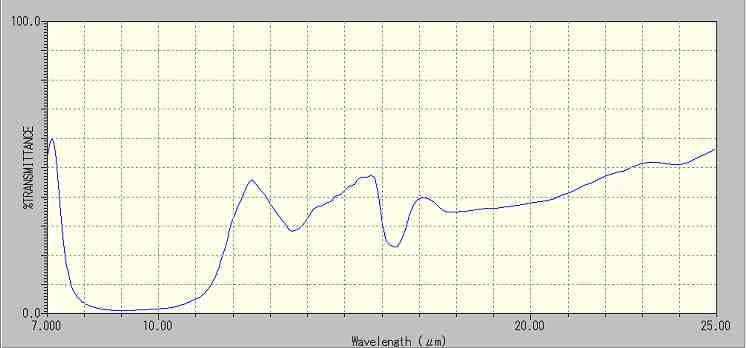

※9.3micron Reflection FIR Transparent
※The optical components of the small diameter,the big diameter are made,too.
※We meet the specification of the higher precision,too.
※Approve a specification in advance because it is sometimes changed for the improvement.
